Description

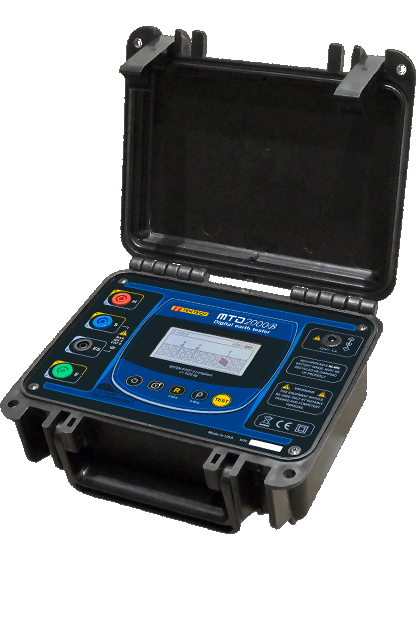

The MTD2000B digital earth tester allows for the measurement of Earth Resistances and Soil Resistivity, and also the spurious voltages caused by parasitic voltages present in the soil. This equipment is suitable for fast and easy measurement of the grounding resistance in house and industrial buildings, hospital installations, lightning rods, antennas, substations, etc. Soil resistivity measurement allows for soil stratification in order to optimize the most complex grounding systems.
Its state-of-the-art system of active and passive filters provides it with high immunity to electric interferences, making it possible to obtain reliable measurements even in the presence of spurious voltages, such as the ones that can be found in some urban areas and near primary substations.
A 1,470 Hz internal generator injects alternated current on the soil through an auxiliary rod. The voltage generated over the earth resistance is measured by the apparatus, and the resistance value is evaluated. The test current is automatically limited.
This earth tester is supplied with a rechargeable internal battery. The smart charger is microprocessor-controlled, and can be powered from the 100 - 240 V mains adapter or from a 12 V automobile auxiliary power outlet.
Technical specifications
Resistance range
10 mΩ - 2 kΩ
Resistance measurement accuracy
± 2%
Resistance reading resolution
0.01 Ω
Voltage range
0 - 200 V~
Voltage measurement accuracy
± 2%
Voltage reading resolution
0.1 V
Test voltage
50 V (max.)
Output current
2 mA (max.)
Output power
Less than 0.5 W
Measurement modes
Measurement of grounding resistances (with 3 terminals), Soil resistivity by the Wenner method (with 4 terminals) and Voltages present in the ground
Display
LCD graphic (readings in 3½ digit)
Safety
IEC 61010-1, IEC 61557‑1 and IEC 61557-5
Overvoltage protection
CAT II - 300 V
EMC
IEC 61326-1
Voltage withstand
240 VAC
Dust and drip proof
IP65 (with closed lid)
Operating temperature range
10 °F to 120 °F (-12 °C to 49 °C)
Storage temperature range
-10 °F to 160 °F (-23 °C to 71 °C)
Humidity range
98% RH (non condensing).
Rechargeable battery
6 NiMH LR6 cells
Battery charger
AC adapter, input 100 - 240 V 50/60 Hz, output 12 V - 1 A
Equipment weight
Approx. 3.5 lbs (1.6 kg)
Dimensions
8.7" x 7.5" x 3.9" (220 x 190 x 99 mm)
